Main parameters | |||
Product Type | Variable frequency cold storage unit | Noise (host) | 52 |
Host power supply | 220V/50Hz | Air volume of main engine (m³/h) | 1700 |
Rated cooling capacity (W) | 7500(400~7500) | Fan air volume (m³/h) | 2200 |

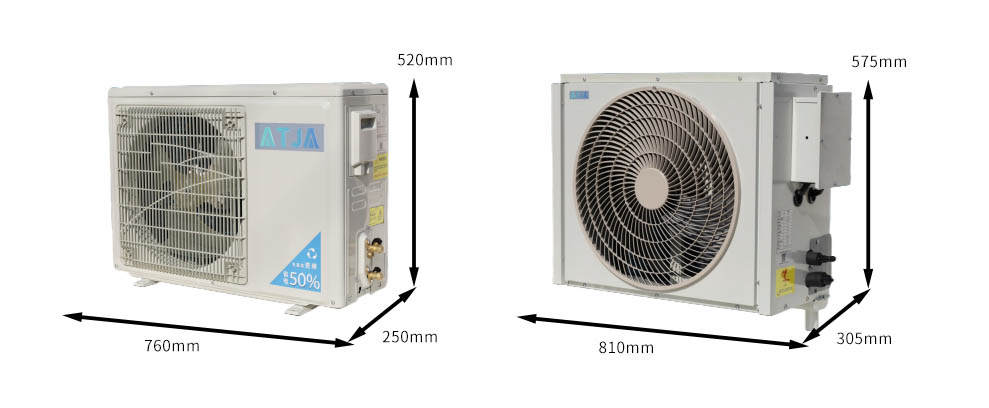

Applicable volume (m³) | 12~60 | Host size (mm) | 760*520*250 |
Warehouse temperature range | -25℃~35℃ | Fan size (mm) | 810*305*575 |
Ambient temperature range | (-35°℃~65°C) | 50mm thick polyurethane insulation layer | 25m³ |
Maximum input power (W) | 2200(250~2200) | 100mm thick polyurethane insulation layer | 60m³ |
Maximum input current (A) | 12.5 | Fan power (W) | 70 |
Connecting pipe (mm) | Φ6/φ9.52 | Host weight (kg) | 30.5 |
Nominal load conditions | 10℃/32℃ | Internal unit weight (kg) | 16.5 |
Main parameters | |||
Product Type | Variable frequency cold storage unit | Noise (Host) | 53 |
Host power supply | 220V/50Hz | Air volume of main engine (m³/h) | 2200 |
Rated cooling capacity (W) | 18000 (800~18000) | Fan air volume (m³/h) | 4400 |

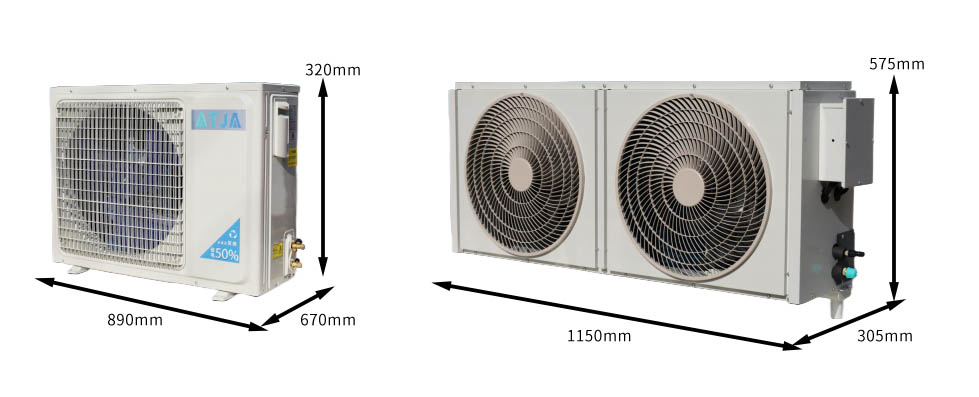

Applicable volume (m³) | 40~160 | Host size (mm) | 890*670*320 |
Warehouse temperature range | -25°℃~35°C | Fan size (mm) | 1150*305*575 |
Ambient temperature range | (-35℃~65℃) | 50mm thick polyurethane insulation layer | 40m³ |
Maximum input power (W) | 4500(350~4500) | 100mm thick polyurethane insulation layer | 160m³ |
Maximum input current (A) | 24 | Fan power (W) | 140 |
Connecting pipe (mm) | φ6/φ12 | Host weight (kg) | 32 |
Nominal load conditions | 10℃/32℃ | Internal unit weight (kg) | 23.5 |
Main parameters | |||
Product Type | Variable frequency cold storage unit | Noise (host) | 55 |
Host power supply | 380V/50Hz | Air volume of main engine (m³/h) | 3200 |
Rated cooling capacity (W) | 30000 (2000~30000) | Fan air volume (m³/h) | 6600 |

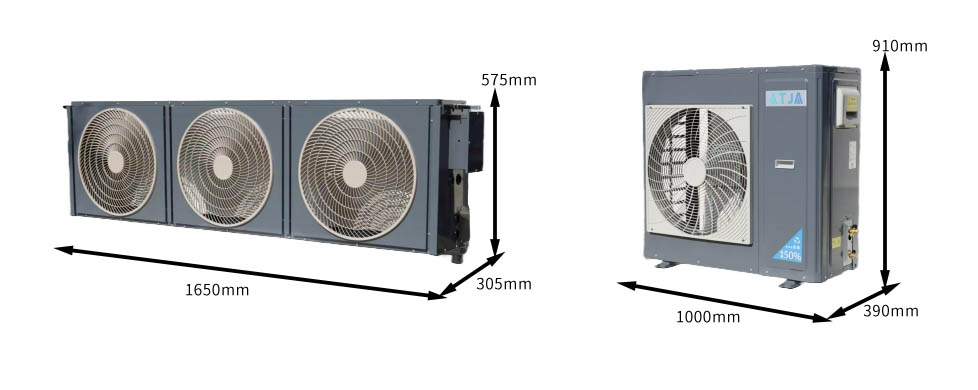

Applicable volume (m³) | 44~220 | Host size (mm) | 1000*910*390 |
Warehouse temperature range | -25°℃~35°C | Fan size (mm) | 1650*305*575 |
Ambient temperature range | (-35°℃~65°℃) | 50mm thick polyurethane insulation layer | 44m³ |
Maximum input power (W) | 8000 (350~8000) | 100mm thick polyurethane insulation layer | 220m³ |
Maximum input current (A) | 23.4 | Fan power (W) | 210 |
Connecting pipe (mm) | φ9.52/Medium 16 | Host weight (kg) | 43 |
Nominal load conditions | 10℃/32℃ | Internal unit weight (kg) | 34 |
